Demo 2: VMware to OpenShift Virtualization (warm migration, storage copy offload)

Version 3.1.1 · draft · 2026-10-17 · class/demos/02-vmware-to-ove-warm.md

🚧 Coming soon. You can't run this demo in this lab yet.

⛔ Blocked: the VDDK path is closed for good. The lab can't obtain VDDK and won't again, so warm migration here waits on a SAN with CSI (below) and Red Hat's storage copy offload path. Until then this page is a placeholder to read.

This demo is written for a lab that has a supported SAN array with its CSI driver and snapshot support on OpenShift. This lab doesn't have one yet: its vSphere datastore is NFS and its OpenShift storage is ODF and NFS. Read it to learn how a warm migration works when the array copies the disks; it runs once the SAN is in.

What changed: the earlier Demo 2 used VMware's VDDK library. VDDK is no longer available to this lab, and this lab won't demo it again (why). Demo 2 now follows the path Red Hat points to: storage copy offload in MTV, with the VDDK-independent transfer Red Hat has in preview (status).

In class today: do Demo 1 (cold migration, no VDDK needed) and its bonus labs, then Demos 1c, 1d and 4.

Why this lab does not demo VDDK

The Virtual Disk Development Kit (VDDK) is VMware's library for reading a VM's disks straight from ESXi. MTV used it to copy disks, and for a warm migration to copy only the blocks that changed while the VM ran. This lab built Demo 2 on it, and has stopped:

  1. We can't get it. Broadcom pulled the old VMware download links. VDDK now sits behind a Broadcom sign-in and entitlement, and the lab couldn't obtain the kit it was built for (vmware-vix-disklib-8.0.3).
  2. Nobody may hand it out. VDDK's licence doesn't let Red Hat, Paragon Micro or a class redistribute it. Each customer must download it under their own entitlement. A class built on it teaches a step most students can't repeat at home.
  3. Red Hat no longer leads with it. Red Hat's position (2026-10-14): a customer who already has a VDDK copy matching their VMware environment may still use it, once they confirm their right to keep and use the software; Red Hat then assesses its technical suitability. That's a bridge for existing customers, not a path to teach.
  4. There's a better path. MTV can have the storage array copy the disks (storage copy offload), and Red Hat is building a VDDK-independent transfer for both warm and cold migration. That is what this demo now teaches.

What still works without VDDK: cold migration. MTV reads the disks over vCenter/ESXi HTTPS instead: it's slower, and the VM is down for its whole disk copy. That's Demo 1, and it runs in this lab today.

The VDDK version of this guide (2.2.0) stays in the repository's history. The lab's VDDK automation (job vddk, Lab S §S.15) is retired.

Where Red Hat is with this (2026-10-14)

Path Status Source
Storage copy offload, cold generally available since MTV 2.11, with supported arrays and configurations MTV 2.11 planning guide
Storage copy offload, warm Technology Preview in MTV 2.11; "fully supported" in MTV 2.12 (MTV-4562) MTV 2.12 release notes
Warm migration without VDDK Developer Preview: Red Hat is testing a VDDK-independent transfer for warm and cold, "for controlled evaluation and not yet for production use" Red Hat, 2026-10-14
CSI volume import (the array clones VVol/RDM disks itself) Developer Preview in MTV 2.12.2 (MTV-5483) MTV 2.12 release notes
An existing VDDK copy may remain a technical option; the customer confirms the right to use it Red Hat, 2026-10-14

[verify] before this demo ships: which of these the lab's MTV version gives, and whether a warm offload migration still needs VDDK for any step (for example the changed-block rounds). Confirm both with Red Hat for the chosen array.

What you will learn

You move your Windows Server + PostgreSQL VM off VMware vSphere and onto OpenShift Virtualization while it keeps running. This time the SAN array does the copying: MTV asks the array, through its API and its CSI driver, to copy each disk into a new OpenShift volume on the same array, so the data never crosses the network. vSphere's Changed Block Tracking (CBT) and snapshots tell MTV what changed between rounds. The VM stops only for the cutover. Then you snapshot the migrated VM on the array, through OpenShift.

Phase Your VM What happens
Pre-copy 1 running MTV snapshots each disk on vSphere; ESXi sends XCOPY and the array copies the whole disk into the new volume
Pre-copy 2, 3, … running every 5 minutes, only the blocks changed since the last round (CBT)
Cutover stopped one last snapshot and copy, the drivers converted, the VM started on OpenShift
After running on OpenShift a VM snapshot, taken by the array through the CSI driver

What this demo needs (this lab doesn't have it yet)

Piece What it must be In this lab today
The SAN array one MTV supports for offload: Hitachi Vantara, NetApp ONTAP, Pure FlashArray, Dell PowerMax, PowerFlex or PowerStore, HPE 3PAR or Primera, Infinidat InfiniBox, IBM FlashSystem none (coresan01 is a Linux iSCSI/NFS appliance: no offload plugin)
The source datastore VMFS on a LUN from that array, over iSCSI or FC, on every ESXi host coresan01_data00, NFS
The CSI driver the array vendor's driver on site A, with a StorageClass on the same array (block volumes) ODF and nfs-csi
Snapshots a VolumeSnapshotClass for that driver, so OpenShift VM snapshots are array snapshots ODF's only
Array API credentials a Secret MTV uses to map new volumes to the ESXi hosts —
vSphere privileges MTV's role plus Red Hat's StorageOffloader privileges (datastore browse and low-level file operations; host advanced settings, query patch, storage partition configuration; global settings) MTV's role only
ESXi clone method SSH (Red Hat's recommendation; MTV makes the key) or the VIB on every host —
MTV feature_copy_offload on (the default), and a version with warm offload (see above) MTV 2.11

The example below uses NetApp ONTAP with its Trident CSI driver. Any array in the list works the same way, with its own product name and Secret keys.

Before you start (once the SAN is in): do Lab 0. You are signed in to the site A console, and every command runs in the console's Web Terminal (>_). Your VM must be running on vSphere, with its disks on the SAN datastore.

⚠ The commands are an example. Change these values to yours before you run them:

In the example Is the example's Replace with yours
student-01-0024-012 class ID and project (student-01 on booking 0024-012) your class ID
win-pg-s01 your VM (s + your student number); on OpenShift it lands as win-pg-s01-warm your VM
10.101.23.101 your VM's address, the SQL server (it keeps it on OpenShift) your VM's address, from Lab 0.1
vcenter01 / VLAN 23 your booking's vCenter (N = 1) and VLAN (22 + N) from your instructor's N
san_vmfs01 · ontap-san · ontap-snapclass the SAN datastore, its StorageClass and VolumeSnapshotClass from your instructor

2.0 Inject: the demo has started

oc exec -n student-01-0024-012 deploy/sql-client -- sql -h 10.101.23.101 -c "SELECT * FROM ovedr_mark('student-01-0024-012', 'demo-started', 'Demo 2: warm migration, storage copy offload');"
oc exec -n student-01-0024-012 deploy/sql-client -- sql -h 10.101.23.101 -c "SELECT id, ts, stage, payload FROM marks ORDER BY id;"   # read back: your rows so far, oldest first

✅ One row, stage = demo-started.

The lab staged a warm plan for you, ready but not started: d2-win-pg-s01 (d2-<your VM>). It lands your VM on site A as win-pg-s01-warm. What makes it an offload plan is its storage map.

Console (site A): Migration for Virtualization → Providers → ovedr-vcenter01. ✅ Ready and Connected.

Console: Migration for Virtualization → Storage maps → ovedr-vcenter01-offload.

✅ One row: source san_vmfs01 → target ontap-san, Offload plugin vSphere XCOPY, Storage product ontap, and a Storage secret. Every row of a plan's storage map must use offload or none may: MTV won't mix the two.

Console: Migration plans → d2-win-pg-s01. ✅ Type Warm, your VM, the storage map ovedr-vcenter01-offload. The status is not Ready yet: expand your VM to see why.

Concern What it means Who fixes it
VMMissingChangedBlockTracking your VM's disks don't have CBT on, so MTV can't find the changes you, in 2.2

The same from the Web Terminal [verify]:

oc -n openshift-mtv get storagemap ovedr-vcenter01-offload -o jsonpath='{range .spec.map[*]}{.source.name}{" -> "}{.destination.storageClass}{"  "}{.offloadPlugin.vsphereXcopyConfig.storageVendorProduct}{"\n"}{end}'   # san_vmfs01 -> ontap-san  ontap
oc -n openshift-mtv get plan d2-win-pg-s01 -o jsonpath='{range .status.conditions[*]}{.type}={.status}{"\n"}{end}'

2.2 Turn on Changed Block Tracking, and clear old snapshots

CBT is one switch for the VM (ctkEnabled) plus one for each disk (scsi0:N.ctkEnabled). vCenter accepts them only while the VM is off.

Shut it down. vCenter: win-pg-s01 → Actions → Power → Shut Down Guest OS. Wait for Powered Off.

Delete old snapshots. win-pg-s01 → Snapshots → Manage Snapshots → delete any you find. A VM that already has snapshots leaves a delta chain that stops the array from doing the copy (ESXi falls back to a slower software copy). The snapshots MTV takes during the warm rounds don't matter.

Add the four parameters. win-pg-s01 → Edit Settings → Advanced Parameters. For each row, type the Attribute and Value, then click ADD:

Attribute Value
ctkEnabled true
scsi0:0.ctkEnabled true
scsi0:1.ctkEnabled true
scsi0:2.ctkEnabled true

Adding ctkEnabled = true on the Advanced Parameters tab Adding a row: Attribute ctkEnabled, Value true, then ADD.

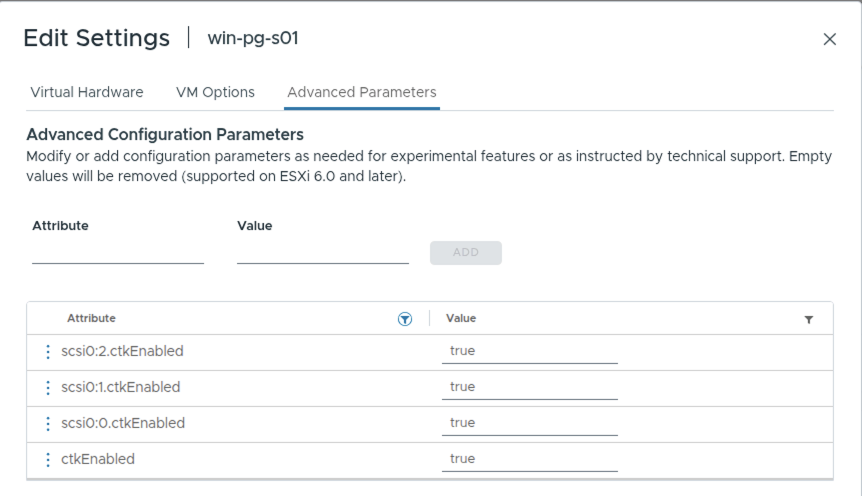

The Advanced Parameters list with all four ctkEnabled rows set to true All four rows set: the VM, plus scsi0:0, scsi0:1 and scsi0:2 for its three disks. Click OK.

Power it back on: Actions → Power → Power On.

✅ Within a minute or two the plan d2-win-pg-s01 shows Ready:

oc -n openshift-mtv get plan d2-win-pg-s01 -o jsonpath='{range .status.conditions[*]}{.type}={.status}{"\n"}{end}'   # Ready=True

Give Windows a minute to start PostgreSQL, then check that the shutdown lost nothing:

oc exec -n student-01-0024-012 deploy/sql-client -- sql -h 10.101.23.101 -c "SELECT * FROM ovedr_verify('student-01-0024-012');"

✅ chain_ok = t.

2.3 Start the warm migration, and keep writing

Console (site A): Migration plans → d2-win-pg-s01 → Start → confirm.

Your VM keeps running on vSphere. For each disk MTV creates a volume on ontap-san and a populator pod that asks ESXi to clone the disk into it; the array does the copy. The plan's page shows the transfer method as storage copy offload, not VDDK.

oc -n openshift-mtv get plan d2-win-pg-s01 -w                                   # EXECUTING True (Ctrl-C)
oc -n student-01-0024-012 get pvc                                               # three volumes on ontap-san [verify]
oc -n openshift-mtv get plan d2-win-pg-s01 -o yaml | grep -i xcopy              # xcopyUsed: the array did the copy [verify]

Give it something to copy. Write 500 rows while the disks copy:

oc exec -n student-01-0024-012 deploy/sql-client -- sql -h 10.101.23.101 -c "SELECT * FROM ovedr_load('student-01-0024-012', 'warm-precopy-load', 500);"

✅ rows_written = 500. Your VM is still serving its database in the middle of the migration.

Count the pre-copies:

oc -n openshift-mtv get plan d2-win-pg-s01 -o jsonpath='pre-copies done: {.status.migration.vms[0].warm.successes}  next: {.status.migration.vms[0].warm.nextPrecopyAt}{"\n"}'

✅ Wait for at least two. Compare how long the first took with a cold copy over the network in Demo 1.

Or: create and start your own warm offload plan from the CLI (instead of the staged one)

A new plan, so the staged one stays as the lab built it. Use one of them: a VM can be in only one running plan.

# your class ID: MTV creates your VM in this project on site A
CLASS_ID=student-01-0024-012
# your VM's name in vCenter
VM=win-pg-s01
# the provider that links site A to your booking's vCenter ("ovedr-vcenter0" + N)
SRC=ovedr-vcenter01
# a NEW plan name, so this never touches the staged d2-win-pg-s01
PLAN=$CLASS_ID-warm-cli

The plan is a normal warm plan; the offload storage map is what makes the array do the copy:

oc apply -f - <<EOT
apiVersion: forklift.konveyor.io/v1beta1
kind: Plan
metadata: { name: $PLAN, namespace: openshift-mtv }
spec:
  warm: true
  targetNamespace: $CLASS_ID
  provider:
    source:      { name: $SRC, namespace: openshift-mtv }
    destination: { name: host, namespace: openshift-mtv }
  map:
    network: { name: $SRC-net-bridge, namespace: openshift-mtv }
    storage: { name: $SRC-offload,    namespace: openshift-mtv }
  vms:
    - { name: $VM, targetName: $VM-warm-cli }
EOT
oc -n openshift-mtv get plan $PLAN -w                # READY True (Ctrl-C)
oc apply -f - <<EOT
apiVersion: forklift.konveyor.io/v1beta1
kind: Migration
metadata: { name: $PLAN-run1, namespace: openshift-mtv }
spec: { plan: { name: $PLAN, namespace: openshift-mtv } }
EOT

In 2.4, after your start-warm-migration row, cut over now:

oc -n openshift-mtv patch migration $PLAN-run1 --type merge -p "{\"spec\":{\"cutover\":\"$(date -u +%Y-%m-%dT%H:%M:%SZ)\"}}"
oc -n openshift-mtv get plan $PLAN -w                # SUCCEEDED True (Ctrl-C)

2.4 Inject, then cut over

Write the "start" row while your VM still runs on vSphere. It must survive the cutover:

oc exec -n student-01-0024-012 deploy/sql-client -- sql -h 10.101.23.101 -c "SELECT * FROM ovedr_mark('student-01-0024-012', 'start-warm-migration', 'on vSphere, before cutover');"
oc exec -n student-01-0024-012 deploy/sql-client -- sql -h 10.101.23.101 -c "SELECT id, ts, stage, payload FROM marks ORDER BY id;"   # read back: your rows so far, oldest first

Console (site A): Migration plans → d2-win-pg-s01 → Cutover → keep now → Set cutover.

MTV shuts your VM down on vSphere, takes one last snapshot, copies the last change, converts the drivers (virt-v2v installs virtio and the QEMU guest agent, and removes VMware Tools) and creates your VM on OpenShift.

oc -n openshift-mtv get plan d2-win-pg-s01 -w                        # SUCCEEDED True (Ctrl-C)

✅ Succeeded.

2.5 Review your VM on OpenShift, and snapshot it on the array

Console (site A): Virtualization → VirtualMachines, project student-01-0024-012 → win-pg-s01-warm.

Tab What you see
Configuration → Network one NIC on default/vmnet23, so it keeps its address
Configuration → Storage three disks on ontap-san: the SAN volumes the array copied into

✅ Running, guest agent connected, address 10.101.23.101.

Snapshot it, on the array. Snapshots → Take snapshot → name after-warm → Save. OpenShift asks the CSI driver, and the array takes the snapshot of each disk in place.

oc -n student-01-0024-012 get vmsnapshot                              # after-warm  Succeeded [verify]
oc -n student-01-0024-012 get volumesnapshot -o custom-columns=NAME:.metadata.name,CLASS:.spec.volumeSnapshotClassName,READY:.status.readyToUse   # ontap-snapclass  true

✅ Three volume snapshots, class ontap-snapclass, ready. Demo 1a shows what you can do with one.

2.6 Inject: the migration is complete, read back, and measure the outage

oc exec -n student-01-0024-012 deploy/sql-client -- sql -h 10.101.23.101 -c "SELECT * FROM ovedr_mark('student-01-0024-012', 'warm-migration-complete', 'on OpenShift site A, SAN');"
oc exec -n student-01-0024-012 deploy/sql-client -- sql -h 10.101.23.101 -c "SELECT id, ts, stage, payload FROM marks ORDER BY id;"
oc exec -n student-01-0024-012 deploy/sql-client -- sql -h 10.101.23.101 -c "SELECT * FROM ovedr_verify('student-01-0024-012');"

✅ The read-back ends with demo-started, the 500 warm-precopy-load rows, start-warm-migration and warm-migration-complete. chain_ok = t: nothing written during the copy was lost, changed or reordered.

The real outage, from your VM's heartbeat (a row every 5 seconds):

oc exec -n student-01-0024-012 deploy/sql-client -- sql -h 10.101.23.101 -c "SELECT ts AS back_at, date_trunc('second', gap) AS outage FROM (SELECT ts, ts - lag(ts) OVER (ORDER BY id) AS gap FROM heartbeat) g WHERE gap > interval '10 seconds' AND ts > (SELECT max(ts) FROM marks WHERE student = 'student-01-0024-012' AND stage = 'start-warm-migration') ORDER BY ts;"

✅ One row: the cutover outage, minutes rather than the whole copy.

The guest tools were swapped:

oc exec -n student-01-0024-012 deploy/sql-client -- sql -h 10.101.23.101 -x -c "SELECT ts, platform, vmtools, qemu_ga, virtio FROM guest_tools ORDER BY id DESC LIMIT 1;"

✅ qemu_ga Running, virtio drivers listed, vmtools not running.

That is the end of Demo 2. Your VM moved while it kept writing, the array did the copying, and the array holds its first snapshot on OpenShift.

Bonus labs (optional)

The Demo 1 bonus labs work on this VM too: use win-pg-s01-warm wherever they say win-pg-s01.

Bonus What you do
Demo 1a: snapshot and restore snapshot, destroy the database, restore
Demo 1b: live migration and storage migration move the running VM to another node, then to another storage class
Demo 1c: cross-cluster migration site A → site B in ACM

Back to: Demo 1 · Student guide.

Addendum: how the lab will stage this demo, as code

Not built yet: it waits on the SAN. The provider, the network map and the CI pipeline stay as Demo 1's (Demo 1 addendum). Offload adds:

Piece What it declares
the SAN fabric a VMFS datastore on an array LUN for every ESXi host; the vendor's CSI driver, StorageClass and VolumeSnapshotClass on site A
mtv-install the 5-minute pre-copy interval, and feature_copy_offload on
mtv-fabric the StorageOffloader privileges on MTV's vSphere role; esxiCloneMethod: ssh on the provider; the array Secret; the offload storage map
stage the warm plan d2-<vm> on the offload map, landing as <vm>-warm
# the array's API credentials, which MTV uses to map new volumes to ESXi (keys vary by vendor)
apiVersion: v1
kind: Secret
metadata: { name: ovedr-san-offload, namespace: openshift-mtv }
stringData:
  GOVMOMI_HOSTNAME: vcenter01.demo.lab-paragonmicro.com
  GOVMOMI_USERNAME: ovedr-mtv@vsphere.local
  GOVMOMI_PASSWORD: <from the lab's secret store>
  STORAGE_HOSTNAME: <the array's management address>
  STORAGE_USERNAME: <array user>
  STORAGE_PASSWORD: <from the lab's secret store>
  ONTAP_SVM: <the SVM that serves the LUNs>          # NetApp only
---
# the provider: the clone method is the only change from Demo 1's
apiVersion: forklift.konveyor.io/v1beta1
kind: Provider
metadata: { name: ovedr-vcenter01, namespace: openshift-mtv }
spec:
  type: vsphere
  url: https://vcenter01.demo.lab-paragonmicro.com/sdk
  secret: { name: ovedr-vcenter01, namespace: openshift-mtv }
  settings:
    esxiCloneMethod: ssh                              # or vib; no vddkInitImage
---
# the offload storage map: the SAN datastore -> the SAN's StorageClass, copied by the array
apiVersion: forklift.konveyor.io/v1beta1
kind: StorageMap
metadata: { name: ovedr-vcenter01-offload, namespace: openshift-mtv }
spec:
  provider:
    source:      { name: ovedr-vcenter01, namespace: openshift-mtv }
    destination: { name: host, namespace: openshift-mtv }
  map:
    - source: { name: san_vmfs01 }
      destination: { storageClass: ontap-san }
      offloadPlugin:
        vsphereXcopyConfig: { secretRef: ovedr-san-offload, storageVendorProduct: ontap }
---
# the staged warm plan, on the offload map
apiVersion: forklift.konveyor.io/v1beta1
kind: Plan
metadata: { name: d2-win-pg-s01, namespace: openshift-mtv, labels: { ovedr/stage: plan, ovedr/type: warm } }
spec:
  warm: true
  targetNamespace: student-01-0024-012
  provider: { source: { name: ovedr-vcenter01, namespace: openshift-mtv }, destination: { name: host, namespace: openshift-mtv } }
  map:
    network: { name: ovedr-vcenter01-net-bridge, namespace: openshift-mtv }
    storage: { name: ovedr-vcenter01-offload,    namespace: openshift-mtv }
  vms: [ { name: win-pg-s01, targetName: win-pg-s01-warm } ]

The Secret, StorageMap and Provider fields follow Red Hat's guide and MTV's upstream populator; [verify] each one on the lab's MTV version and array.

What stays hands-on, on purpose: CBT and clearing old snapshots (2.2), starting the plan and the cutover (2.3, 2.4), and the snapshot on the array (2.5).

Thank you
